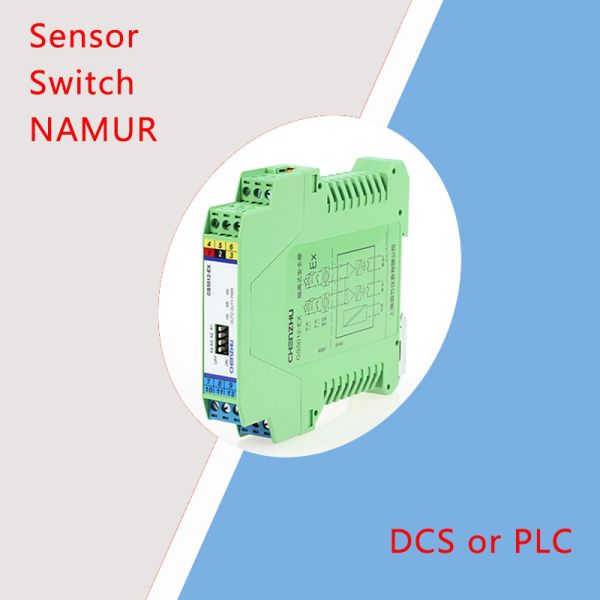

GS5011-EX GS5012-EX Safety Barrier - 250V AC, 2A or 30V DC, 2A Output
Technical Specifications
| Parameter |
GS5011-EX |
GS5012-EX |
GS5111-EX |
| Number of channels |
1 in, 2 out |
2 in, 2 out |
1 in, 1 out |
| Response time |
≤10ms |
|
|
| Input signal |
Dry contact; NAMUR type proximity switch |
|
|
| Open-circuit voltage |
≤28V |
≤28V |
≤28V |
| Distribution voltage |
Voltage at 20mA: ≥15.5V |
Voltage at 20mA: ≥15.5V |
Voltage at 20mA: ≥15.5V |
| Normal operating current |
≤25mA |
≤25mA |
≤25mA |
| Output signal |
250V AC, 2A or 30V DC, 2A |
|
|
| Current output load resistor |
RL≤300Ω (550Ω optional) |
RL≤300Ω (550Ω optional) |
RL≤300Ω (550Ω optional) |
| Voltage output load resistor |
RL 330 kΩ or higher |
RL 330 kΩ or higher |
RL 330 kΩ or higher |
| Supply voltage (Ue) |
20-35V DC |
20-35V DC |
20-35V DC |
| Power protection |
Reverse power supply protection |
Reverse power supply protection |
Reverse power supply protection |
| Current consumption |
≤75mA (when powered by 24V and with 20mA output) |
≤75mA (when powered by 24V and with 20mA output) |
≤75mA (when powered by 24V and with 20mA output) |
| Power supply mode |
Independent power supply |
Independent power supply |
Independent power supply |
| Power connection method |
Terminal power supply |
Terminal power supply |
Terminal power supply |
| Material |
PA |
PA |
PA |
| Protection grade |
IP20 |
IP20 |
IP20 |
